2016 workshop · Engine

303-01C Engine Cooling - 5.0L

2016 Mustang5.0LReference 596 / 6,619HTML edition

← Chapter contents

303-01C Engine Cooling - 5.0L — original illustration 1, reference 596Original colors & callouts · Select to enlarge

3. NOTE: If equipped.

Install the underbody shield.

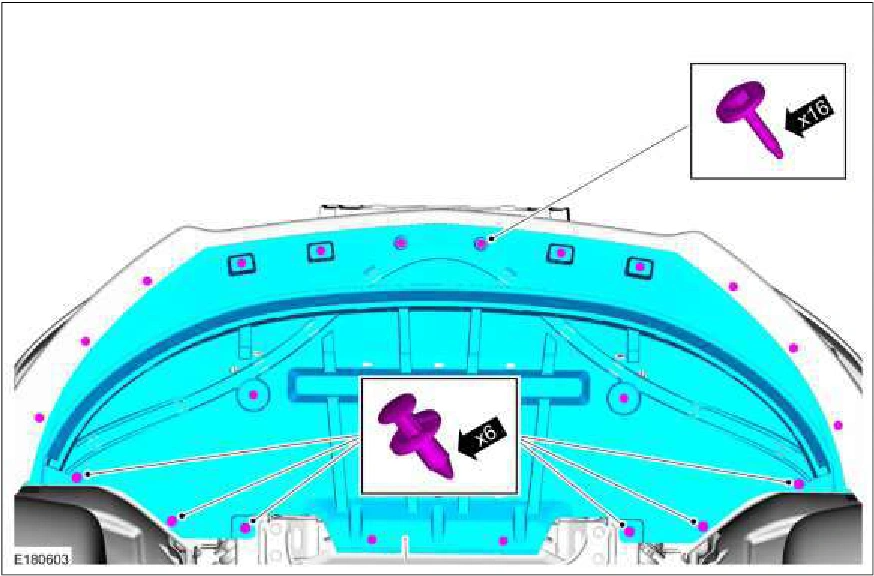

303-01C Engine Cooling - 5.0L — original illustration 2, reference 596Original colors & callouts · Select to enlarge

4. NOTE: If equipped.

Install the underbody shield.
