Gateway Module A (GWM)

418-00 Module Communications Network 2016 Mustang

Removal and Installation Procedure revision date: 05/11/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the GWM following the on-screen instructions.

2. Remove the nuts and the GWM. Disconnect the electrical connector. Torque : 89 lb.in (10 Nm)

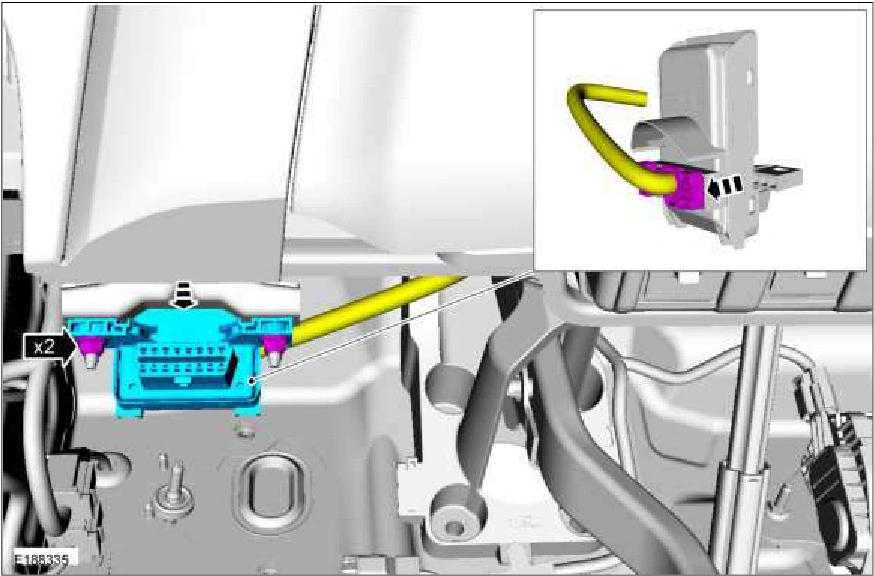

Gateway Module A (GWM) — original illustration 1, reference 5974Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Using a diagnostic scan tool, complete the PMI process for the GWM following the on-screen instructions.

Source reference 5974
