Perimeter Anti-Theft Alarm - System Operation and Component Description
System Operation

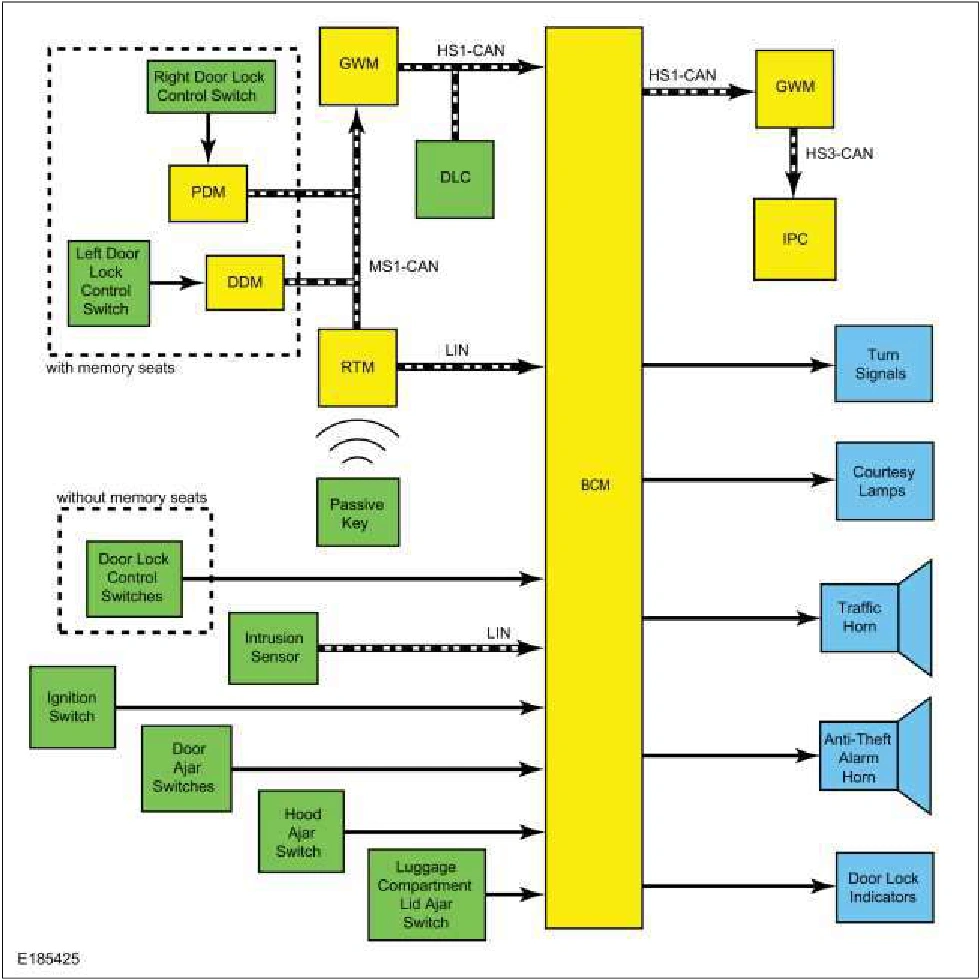

System Diagram
Network Message Chart
IPC Network Input Messages
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Perimeter alarm chime request | BCM | Used by the IPC to sound the perimeter alarm chime during the 12-second delay. |
Source reference 5982
