Passive Anti-Theft System (PATS) - System Operation and Component Description
System Operation

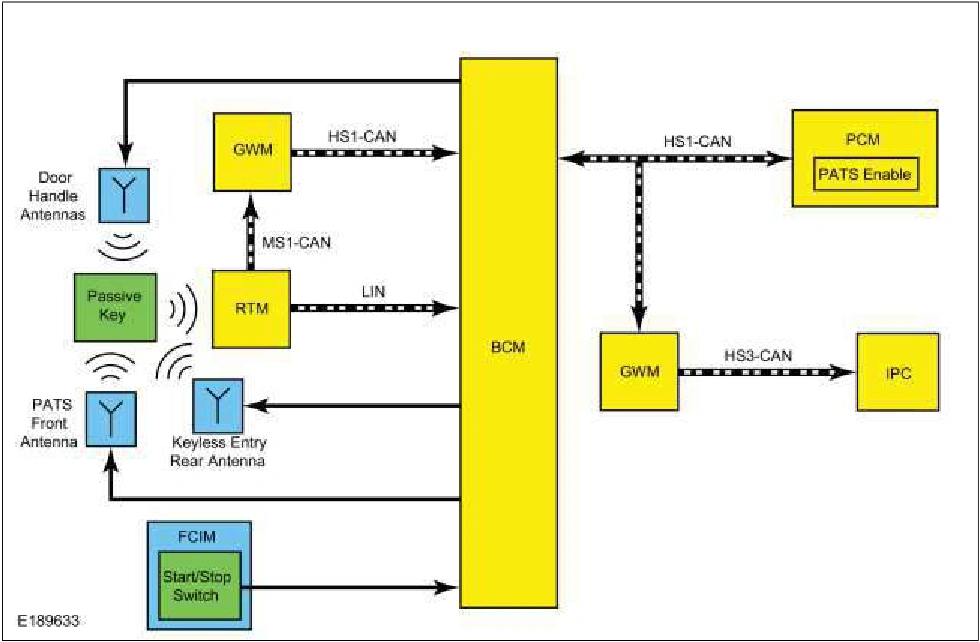

System Diagram
Network Message Chart
BCM Network Input Messages
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
RKE data | RTM | The RTM sends the BCM programmed passive key information. |
PATS start request target command | PCM | The PCM sends the BCM a challenge request for a valid ID. |
IPC Network Input Messages
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Vehicle mode | BCM | Used by the IPC to display No Key Detected when the START/STOP button is pressed and no programmed key is detected within the vehicle. |
