Cruise Control - System Operation and Component Description
System Operation

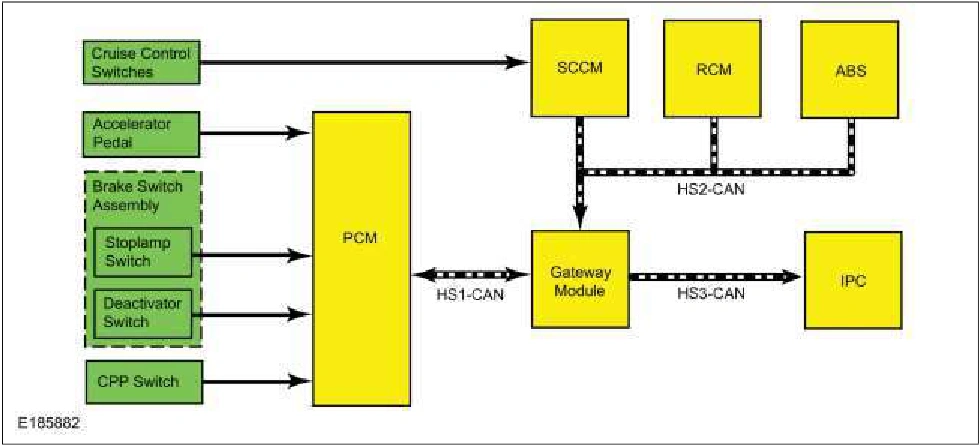

Network Message Chart
Network Input Messages - IPC
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Cruise control override | PCM | Driver overriding cruise control with accelerator pedal. |
Cruise control status | PCM | Data used for speed control indicator status. |
Cruise control set speed display | PCM | Data used for speed control indicator display. |
Network Input Messages - PCM
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Steering wheel switch speed control | SCCM | Used for cruise control enable/disable and operating mode request. |
Stability control event in progress | ABS module | Deactivates speed control when requested. |
Traction control event in progress | ||
Vehicle lateral acceleration | ABS module | Deactivates speed control when requested. |
Vehicle longitudinal acceleration | ||
Vehicle yaw rate | RCM |
