419-03A Cruise Control 2016 Mustang

Removal and Installation Procedure revision date: 08/6/2015

Cruise Control Deactivator Switch

Base Part Number: 7C534

Removal

1. Remove the driver knee airbag. Refer to: Driver Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).

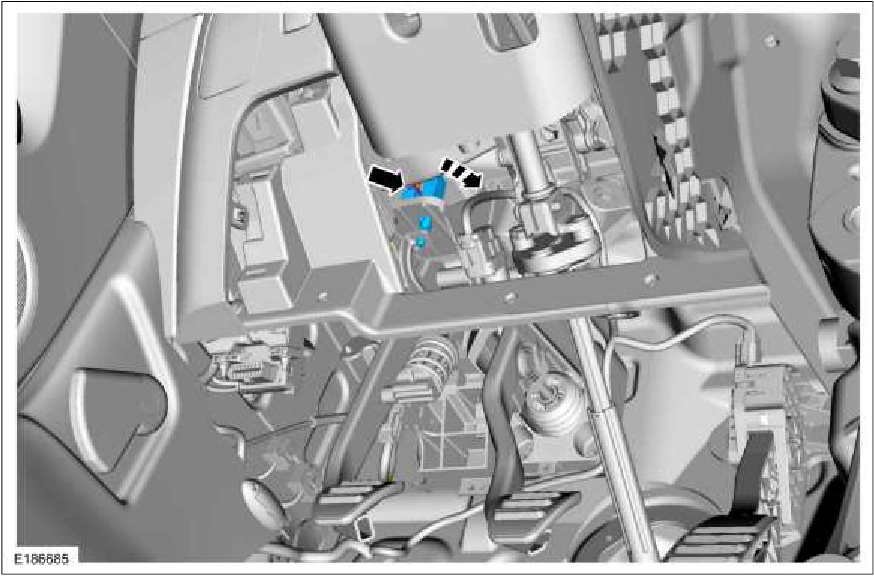

2. Remove the cruise control deactivator switch then disconnect the electrical connector.

Cruise Control Deactivator Switch — original illustration 1, reference 6063Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Copyright © 2016 Ford Motor Company
