Cruise Control - System Operation and Component Description
System Operation

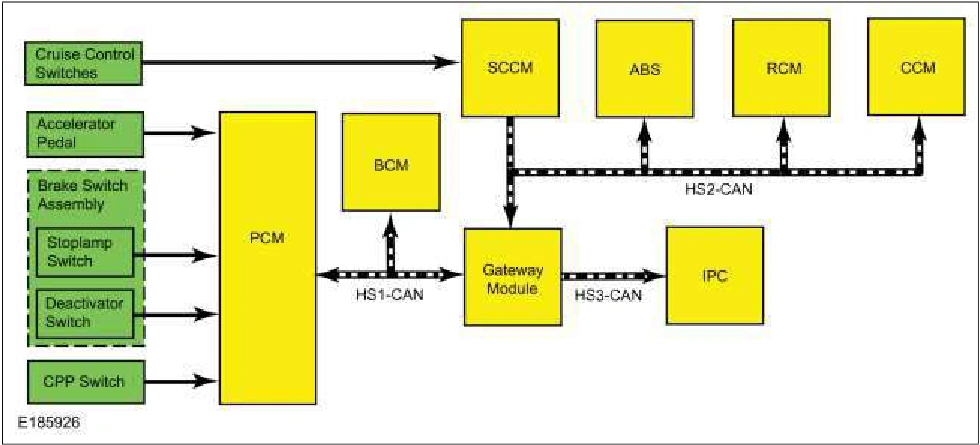

Adaptive Cruise Control
Network Message Chart
Network Input Messages - ABS Module
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Adaptive cruise control deceleration request | CCM | Used for cruise control automatic braking. |
Brake pedal applied | PCM | Used for brake switch input. |
Vehicle lateral acceleration | RCM | Deactivates cruise control when requested. |
Vehicle longitudinal acceleration |
Network Input Messages - CCM
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Accelerator pedal position | PCM | Used for accelerator pedal status. |
Brake pedal applied | PCM | Used for brake switch input. |
Cruise control override | PCM | Driver overriding cruise control with accelerator pedal. |
Ignition status | BCM | Used for ignition switch position input. |
Stability control event in progress | ABS module | Deactivates cruise control when requested. |
Traction control event in progress |
