Collision Warning and Collision Avoidance System - System Operation and Component Description
System Operation

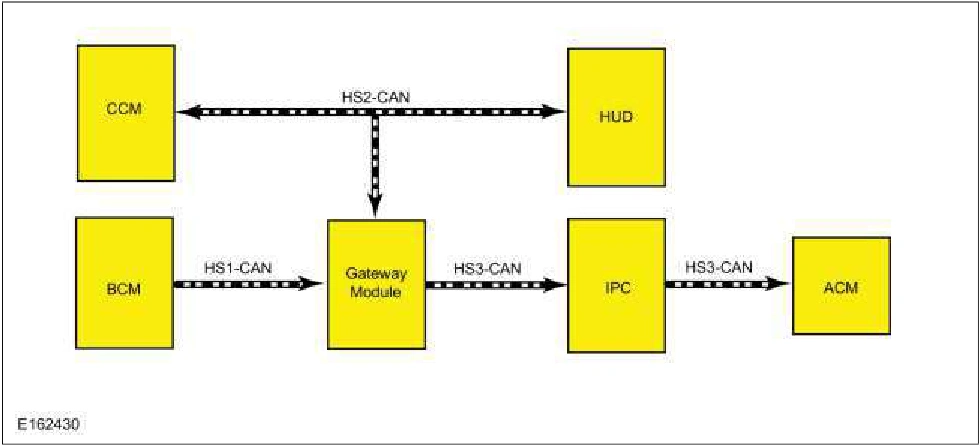

System Diagram
Network Message Chart
Network Input Messages - ACM
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
IPC chime | IPC | Data used to command a warning chime during possible collision event and audio mute so that the warning chime can be heard. |
Network Input Messages - CCM
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
HUD data | HUD module | Used for HUD module active, available and fault status. |
Network Input Messages - HUD
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
HUD flash command | CCM | Flashes the HUD module LED array when commanded. |
Ignition status | BCM | Used for ignition switch position input. |
