Head Up Display (HUD) Module

419-03C Collision Warning and Collision Avoidance System 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Removal

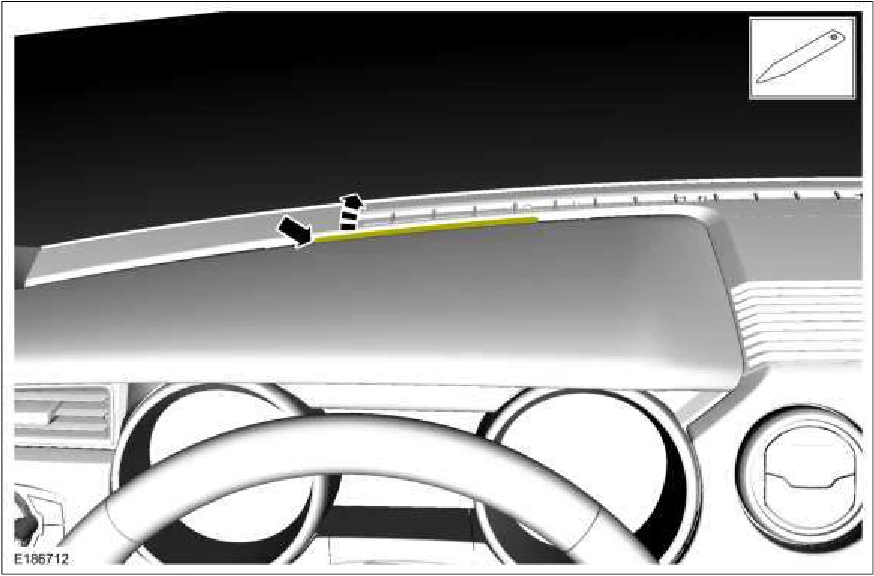

1. Using a non-marring tool, release the tab and position the HUD up.

Head Up Display (HUD) Module — original illustration 1, reference 6146Original colors & callouts · Select to enlarge

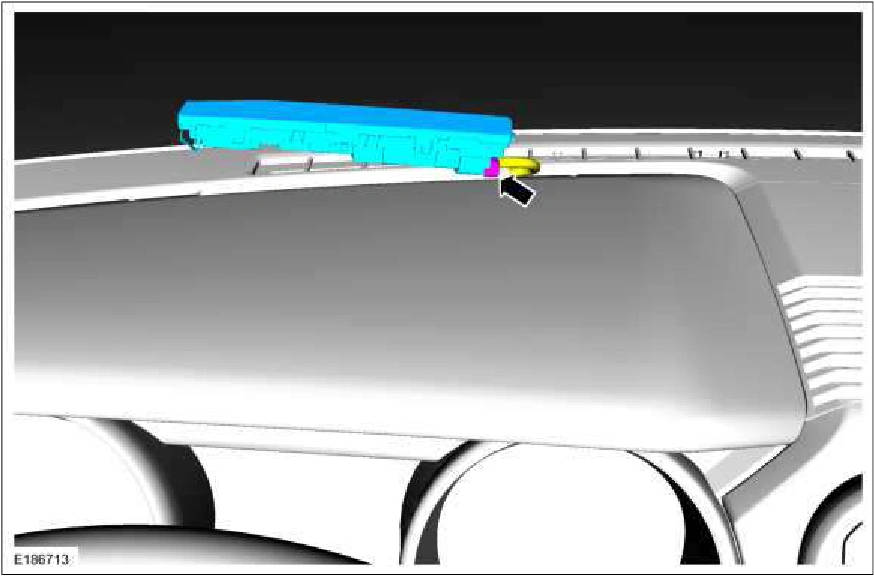

2. Disconnect the electrical connector and remove the HUD.

Head Up Display (HUD) Module — original illustration 2, reference 6146Original colors & callouts · Select to enlarge

Source reference 6146
