Side Obstacle Detection Control Module

419-04 Side and Rear Vision 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Removal

Side obstacle detection control module

NOTE: This step is only necessary if the SODL or SODR is being replaced.

1. Using a diagnostic scan tool, begin the PMI process for the SODL or SODR following the on-screen instructions.

2. Remove the rear bumper cover. Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

3. Disconnect the electrical connector, remove the screws and the SODL or SODR.

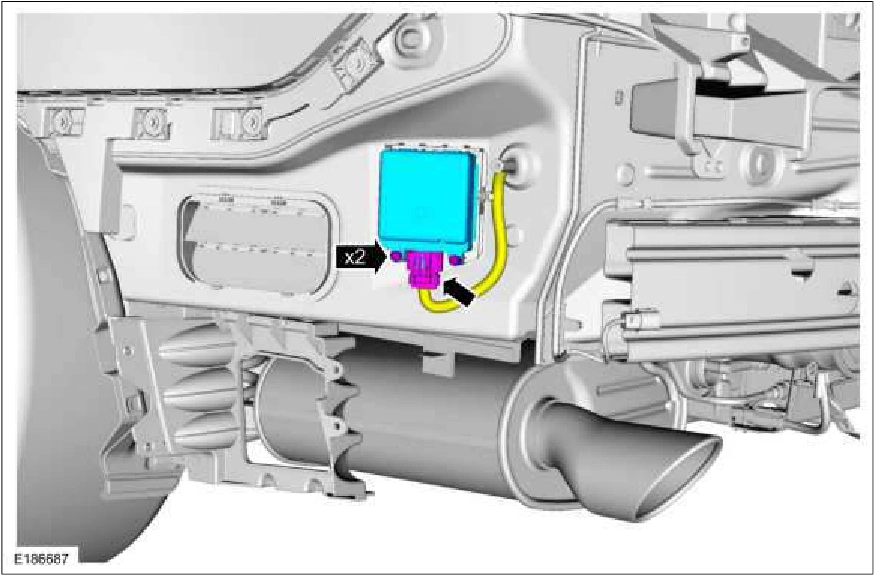

Side Obstacle Detection Control Module — original illustration 1, reference 6188Original colors & callouts · Select to enlarge

Side obstacle detection control module bracket

4. Remove the SODL or SODR.

5. Disconnect the wiring harness guide, remove the screws and the side obstacle control module bracket.

Source reference 6188
