Module Controlled Functions - Component Location

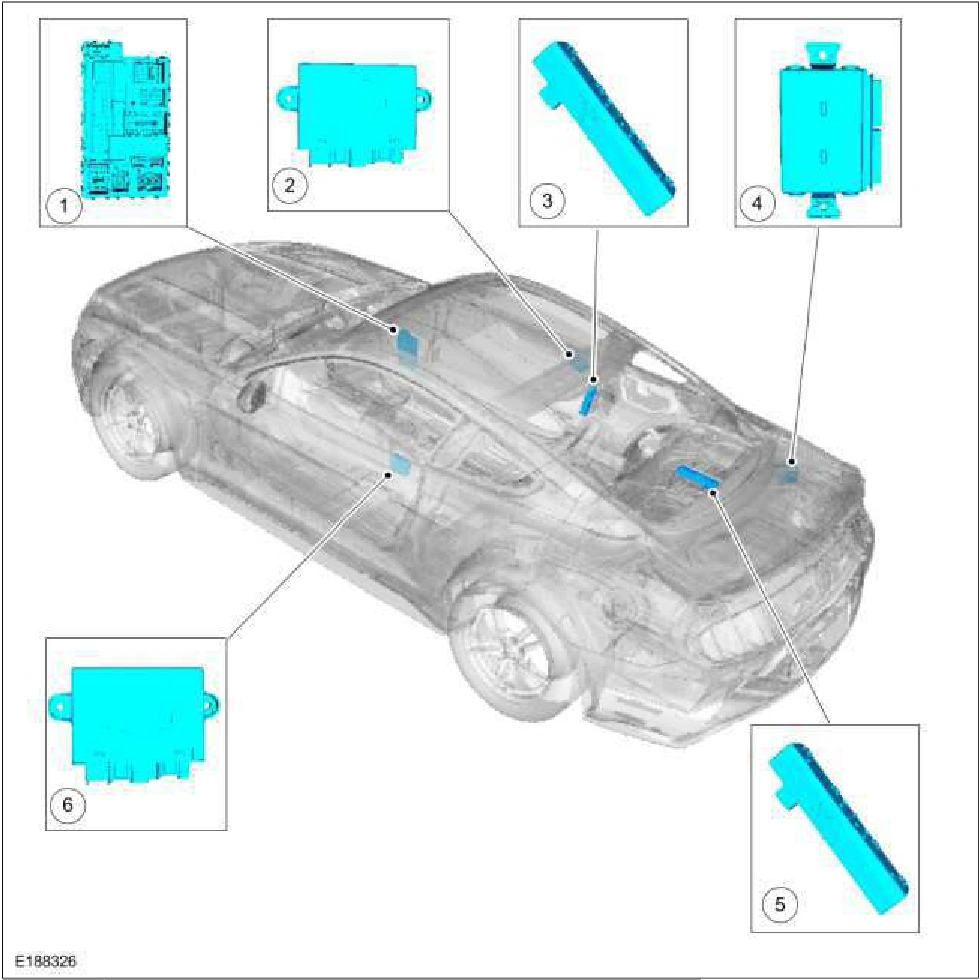

Module Controlled Functions - Component Location — original illustration 1, reference 6190Original colors & callouts · Select to enlarge
Item	Description
1	BCM
2	PDM
3	RTM (Convertible)
4	Body Control Module B (BCM-B)
5	RTM (Coupe)
6	DDM

Source reference 6190
