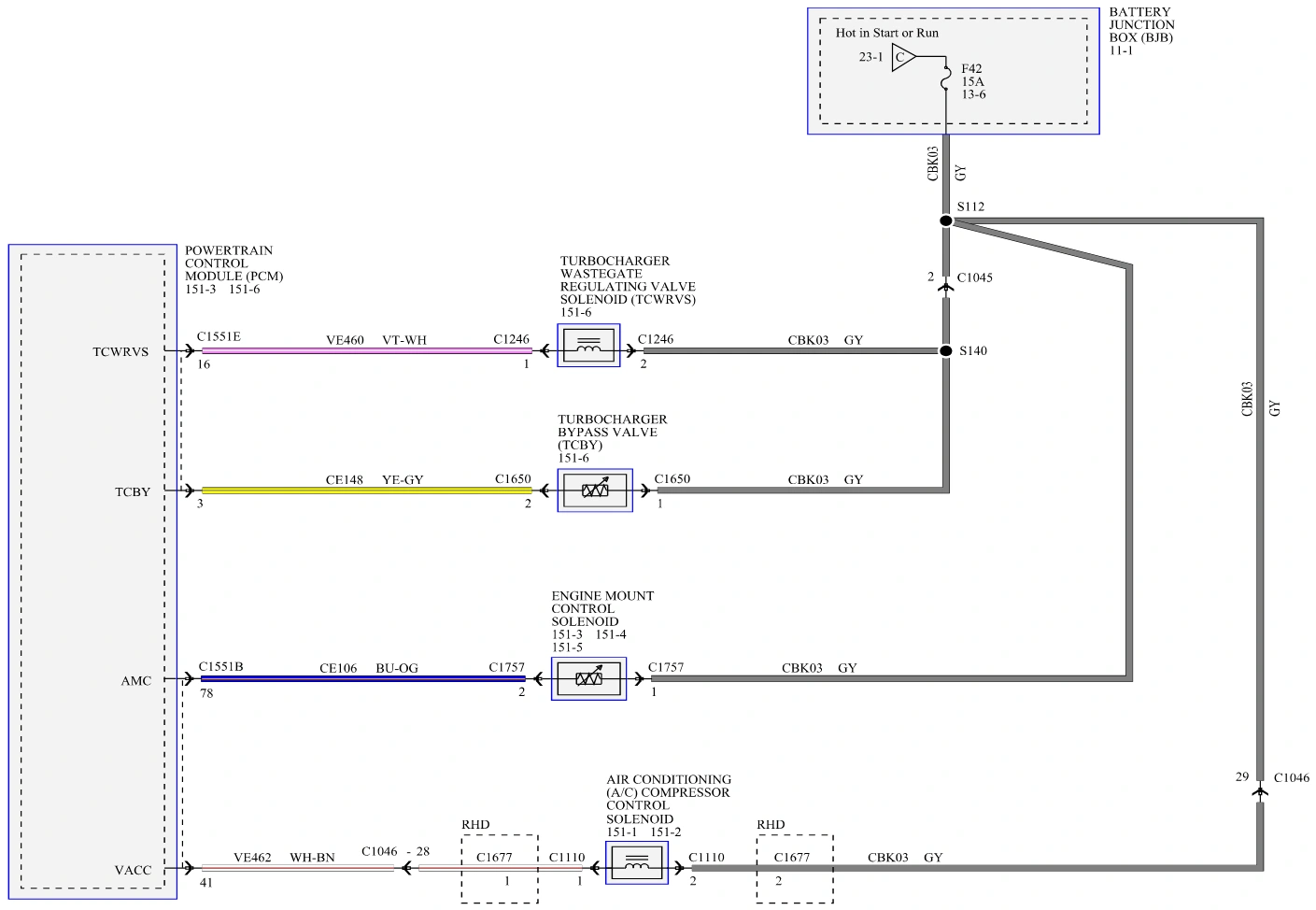

TCWRVS TCBY AMC 151-3 41 POWERTRAIN CONTROL MODULE (PCM) 151-6 C1551E 16 C1551B VE462 WH-BN VE460 CE148 CE106 VT-WH YE-GY BU-OG C1046 - 28 C1246 C1757 , = , C1246 TURBOCHARGER WASTEGATE REGULATING VALVE SOLENOID (TCWRVS) 151-6 CBKO03 GY [CT 2 TURBOCHARGER BYPASS VALVE C1650 CBKO03 GY Joi ENGINE MOUNT CONTROL SOLENOID 151-3 151-4 151-5 ma C1757 CBKO03 GY AIR CONDITIONING (A/C) COMPRESSOR CONTROL SOLENOID 151-1 151-2 BATTERY JUNCTION BOX (BJB) 11-1 @ S140 CBKO03 GY GY C1046
Source reference 6321
2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
