Identification Codes

100-01 Identification Codes 2016 Mustang

Description and Operation Procedure revision date: 05/26/2015

VIN

VIN Locator

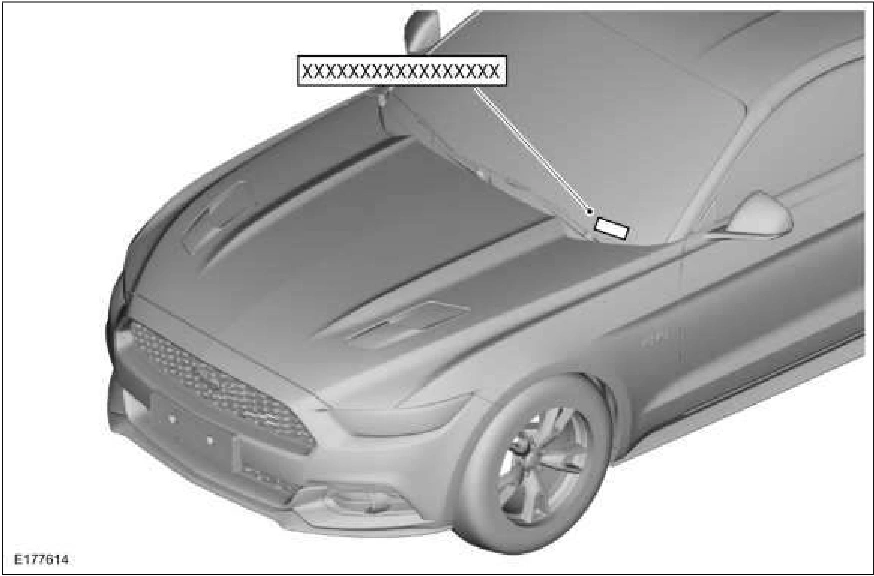

Identification Codes — original illustration 1, reference 65Original colors & callouts · Select to enlarge

The VIN is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN is also found on the VC label. If the VIN plate requires replacement, authorized dealers must contact their respective regional office.

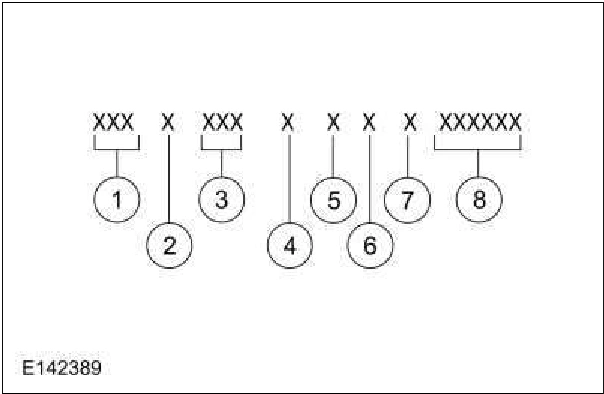

Identification Codes — original illustration 2, reference 65Original colors & callouts · Select to enlarge

Item	Description
1	WMI (World Manufacturer)
2	Restraint-type code
