Vehicle Repair Location Codes

TO PINPOINT THE ACTUAL VEHICLE LOCATION OF A REPAIR, THE VEHICLE REPAIR LOCATION CODE IS REQUIRED.

For example, an "X" has been placed in the quadrant of the vehicle diagrams indicating the location of the repair. See diagrams.

LOCATION CODE, FOR THE EXAMPLE A5/FU - (UNDER THE FLOOR OF DRIVER’S LEFT FOOT.)

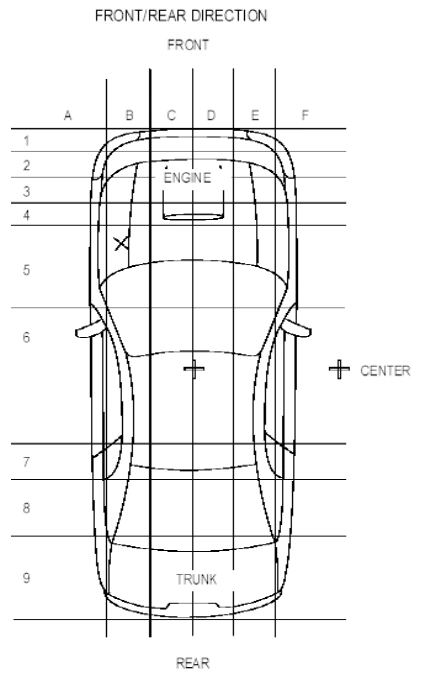

Front/rear direction, location grid A–F and 1–9 · source reference 6619Original colors & callouts · Select to enlarge

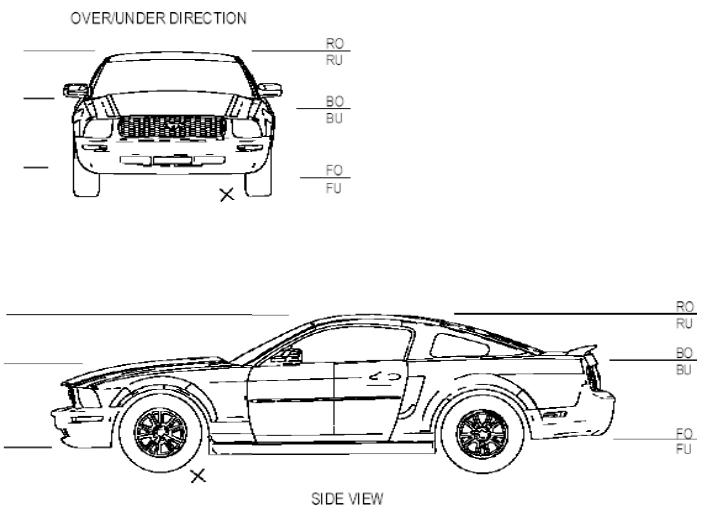

Over/under direction and side view: RO/RU, BO/BU and FO/FU · source reference 6619Original colors & callouts · Select to enlarge
