303-07C Engine Ignition - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Description and Operation

08/13/2014

Engine Ignition - Component Location

5.0L 32V Ti-VCT

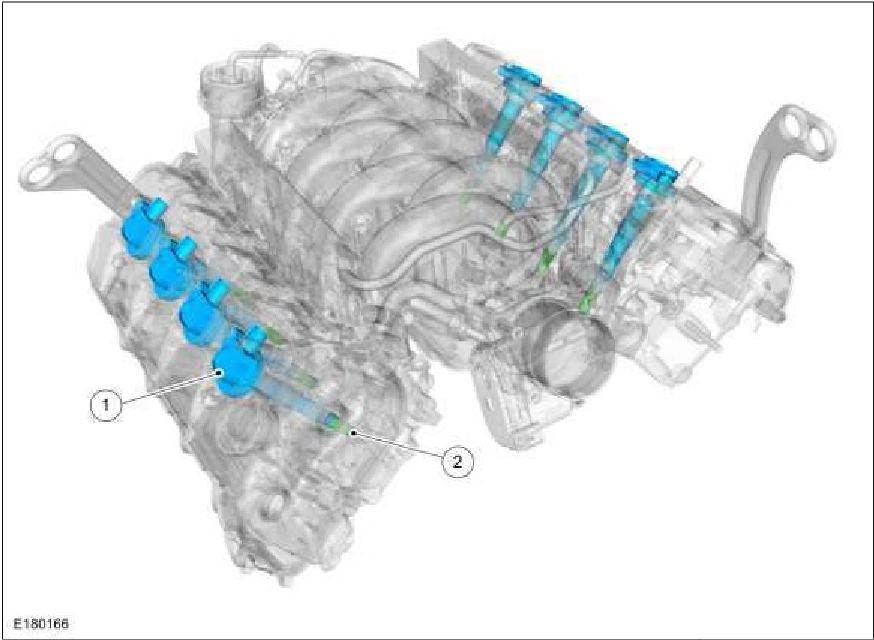

303-07C Engine Ignition - 5.0L — original illustration 1, reference 691Original colors & callouts · Select to enlarge
Item	Description
1	Ignition coil-on-plug(s)
2	Spark plug(s)

Source reference 691
