2016 workshop · Service Information

Identification Codes

100-01 Identification Codes

2016 MustangReference 70 / 6,619HTML edition
← Chapter contentsProcedure contents

GG - 3.31 ratio with automatic transmission YY - 3.15 ratio

Transmission Codes

Available transmissions are as follows:

3 - 6-speed automatic (6R80) E - 6-speed manual (3160) X - 6-speed manual (MT82)

Spring Codes

Spring codes are listed as a 2-part code. The first set of characters identify the front springs. The second set of characters identify the rear springs.

Front Springs

AA - BR33-5310-A BB - BR33-5310-B CC - BR33-5310-C FF - BR33-5310-F GG - BR33-5310-G

Rear Springs

AA - BR33-5560-A BB - BR33-5560-B CC - BR33-5560-C DD - BR33-5560-D EE - BR33-5560-E FF - BR33-5560-F GG - BR33-5560-G JJ - BR3V-5560-J LL - BR3V-5560-L MM - AR3V-5560-M NN - AR33-5560-N

Powertrain Calibration Information

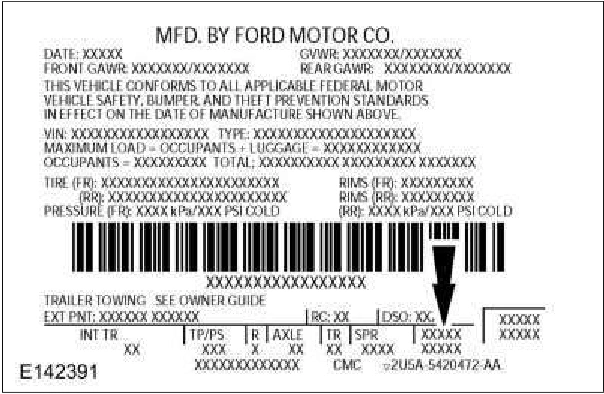

Identification Codes — original illustration 1, reference 70Original colors & callouts · Select to enlarge

NOTE: Powertrain calibration information is limited to a maximum of 5 characters per line on the VC label. Because of this, calibration identification consisting of more than 5 characters will wrap to the second line on the VC label.
