Rear View Mirrors - System Operation and Component Description — 2016 workshop reference 900

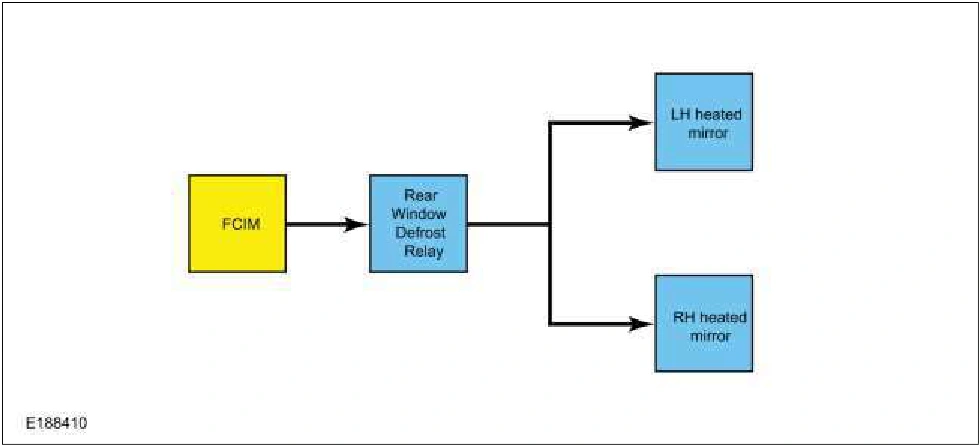

Rear View Mirrors - System Operation and Component Description — original illustration 1, reference 900Original colors & callouts · Select to enlarge

System Operation - Exterior, Heated, Without Memory

The rear window defrost system controls operation of the heated exterior mirror glass. The heated exterior mirror glass only operates when the rear window defrost system is active. The heated exterior rear view mirror glass deactivates when the rear window defrost deactivates.

The heated mirror glass receives voltage from the rear window defrost relay located inside the BJB. The LH and RH heated mirror glass does not share the same ground.

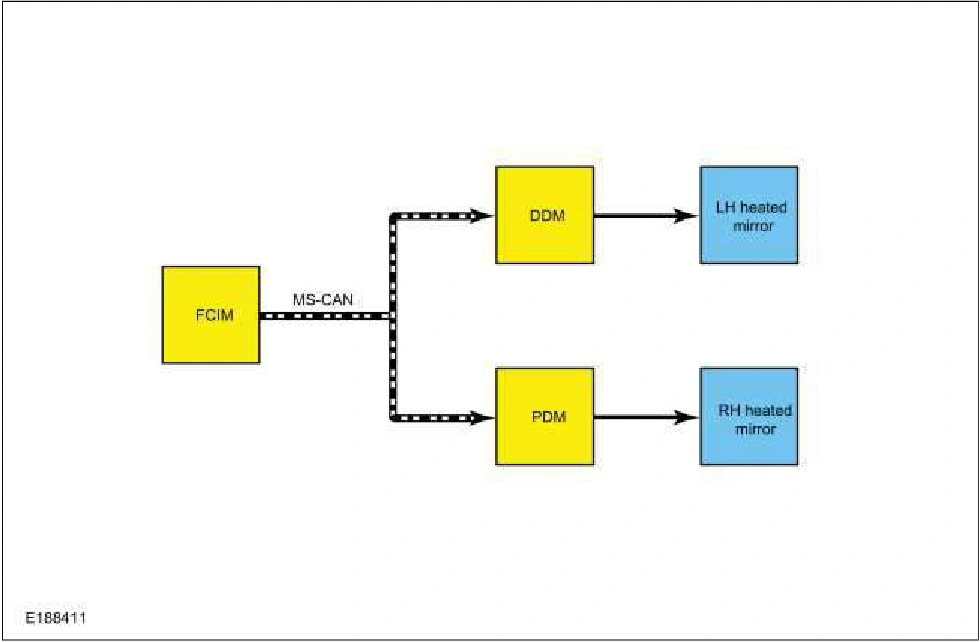

System Diagram - Exterior, Heated, With Memory

Rear View Mirrors - System Operation and Component Description — original illustration 2, reference 900Original colors & callouts · Select to enlarge

Network Message Chart

Module Network Input Messages — DDM and PDM

Broadcast Message	Originating Module	Message Purpose

Source reference 900

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
