Rear View Mirrors

501-09 Rear View Mirrors

2016 MustangReference 953 / 6,619HTML edition
← Chapter contentsProcedure contents
Rear View Mirrors — original illustration 1, reference 953Original colors & callouts · Select to enlarge

Did the mirror adjust to a low reflectance (darkened) state?

Yes

GO to H7

No

GO to H8

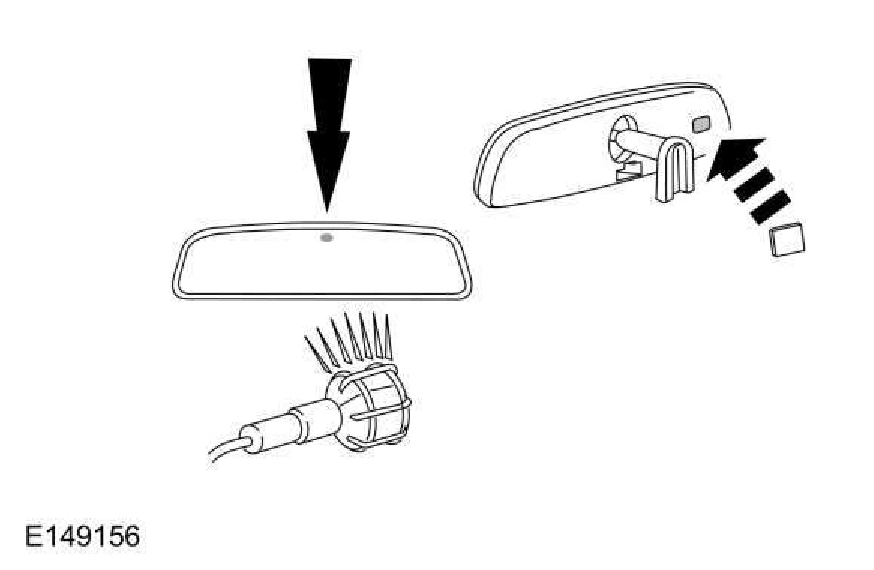

H7 VERIFY THE OPERATION OF THE INTERIOR AUTO-DIMMING MIRROR - VEHICLE IN REVERSE AND NIGHTTIME CONDITIONS WITH GLARE

NOTE: Covering the sensor(s) with a finger or hand is not adequate for this step.

Continue to illuminate the rearward facing sensor with the forward facing sensor covered.

Rear View Mirrors — original illustration 2, reference 953Original colors & callouts · Select to enlarge

Select REVERSE.

Source reference 953
