Front Seats - System Operation and Component Description — 2016 workshop reference 981

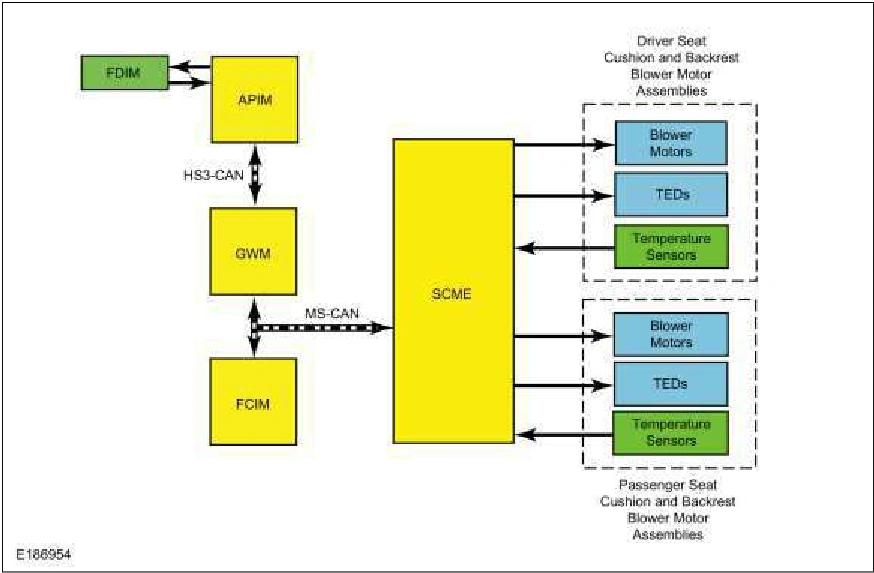

Front Seats - System Operation and Component Description — original illustration 1, reference 981Original colors & callouts · Select to enlarge

Network Message Chart - Climate Controlled Seats

SCME Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Climate control seat settings request	FDIM	The climate control seat settings request message contains the climate controlled seat request information.
Climate control seat settings request	FCIM	The climate control seat settings request message contains the climate controlled seat request information.

FDIM Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Climate control seat settings status	SCME	The SCME provides this message to the FDIM for the purpose of updating the displayed status of the climate controlled seat buttons on the FDIM (touchscreen).

FCIM Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Climate control seat settings status	SCME	The SCME provides this message to the FCIM for the purpose of updating the displayed status of the climate controlled seat buttons on the FCIM.
