Harness
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers

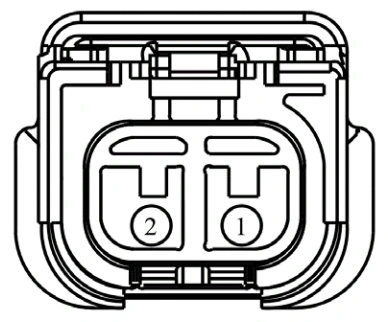

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CE113 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (EVAPCP) | |
2 | CBK02 (GN) | 18 | FUSE - 40 OR CIRCUIT BREAKER (VPWR 2) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1133 | Service Part Number: BU2Z-14S411-FA Gauge: 16 Pin material: Silver |
