Check for Terminal Part Numbers

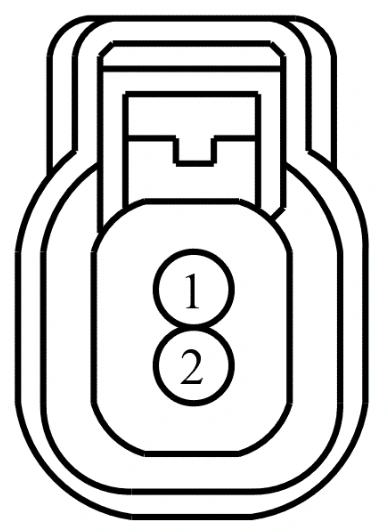

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CMC19 (GY-VT) | 20 | SWITCH - LOW LEVEL BRAKE FLUID | |
2 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-984 | Service Part Number: 3U2Z-14S411-BXAB Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses |
