CONNECTOR VIEWS > CONNECTOR END VIEW C126 - INLINE

InlineC126

Description

INLINE

Color

BK

Base Part #

Service Pigtail

See Below

MALE

Harness 14290

FEMALE

Harness 14290

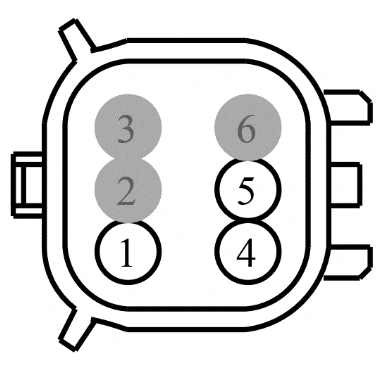

Connector End View C126 - Inline — original illustration 1, reference 3712Original colors & callouts · Select to enlarge
