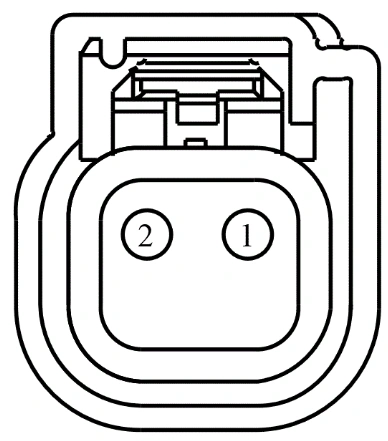

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT | |
1 | GD120 (BK-GN) | 16 | GROUND - FENDER FRONT LEFT | |
2 | CPL25 (BU-OG) | 20 | SWITCH - HOOD # AJAR |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1243 | Service Part Number: 3U2Z-14S411-RPC Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses |
