Base Part #
Service Pigtail
See Below

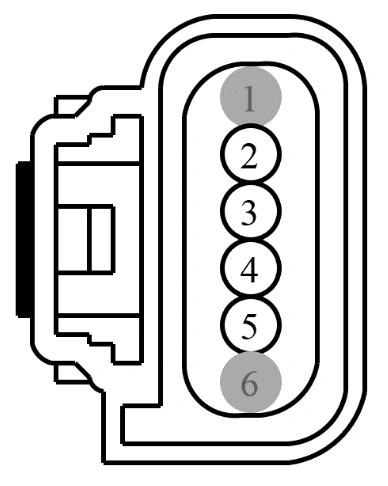

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | * | * | Not Used | |
2 | VE740 (VT-GY) | 18 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | |
3 | CBB74 (VT-BN) | 20 | FUSE - 74 OR CIRCUIT BREAKER | |
4 | RE320 (BU) | 20 | CTRL MOD. - POWERTRAIN # MASS AIRFLOW SEN. LH BANK OR 1ST BANK (SIGRTN) | |
5 | VE807 (YE-VT) | 20 | SENSOR - MASS AIRFLOW LH BANK OR 1ST BANK OR UNIQUE (MAF) | |
6 | * | * | Not Used |
