CONNECTOR VIEWS > CONNECTOR END VIEW C131 - HORN

Connector:C131

Description

HORN

Color

BK

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below

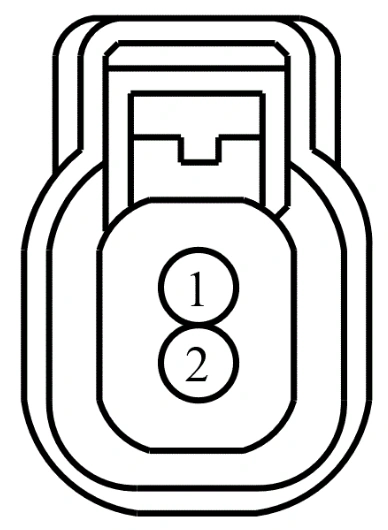

Connector End View C131 - Horn — original illustration 1, reference 3720Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers
