Connector End View C129 - Intake Air Temperature (Iat) Sensor — OEM Connector End Views · Reference 3719

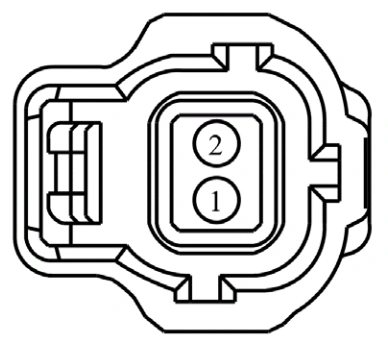

Connector End View C129 - Intake Air Temperature (Iat) Sensor — original illustration 1, reference 3719Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE740 (VT-GY)	20	SENSOR - INTAKE AIR TEMPERATURE (IAT)
2	RE320 (BU) 20		CTRL MOD. - POWERTRAIN # INTAKE AIR TEMPERATURE (IAT) LH BANK OR 1ST BANK (SIGRTN)

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

3U2Z-14S411-JZA

WPT-322

Gauge:

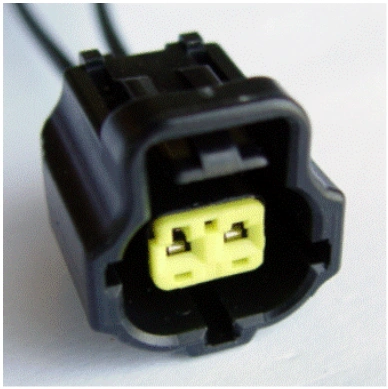

Connector End View C129 - Intake Air Temperature (Iat) Sensor — original illustration 2, reference 3719Original colors & callouts · Select to enlarge

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

Resistor - Daytime Running Lamp (DRL)

Sensor - Air Charge Temperature

Ford_Mustang_all_2015-2017.pdf · source reference 3719
