Connector End View C129 - Intake Air Temperature (Iat) Sensor

OEM Connector End Views

Source configuration appliesSource reference 3,718HTML edition

← Chapter contents Manual collection

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

3U2Z-14S411-FJAC

WPT-1241

Gauge:

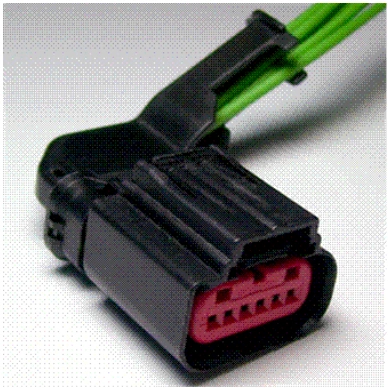

Connector End View C129 - Intake Air Temperature (Iat) Sensor — original illustration 1, reference 3718Original colors & callouts · Select to enlarge

18

Pin material:

Silver

Cavities:

6

Vehicle Uses

Control - Electronic Throttle

Sensor - Mass Air Flow

CONNECTOR VIEWS > CONNECTOR END VIEW C129 - INTAKE AIR TEMPERATURE

(IAT) SENSOR

Connector:C129

Description

INTAKE AIR TEMPERATURE (IAT) SENSOR

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below
