Service Pigtail
Check for Terminal Part Numbers

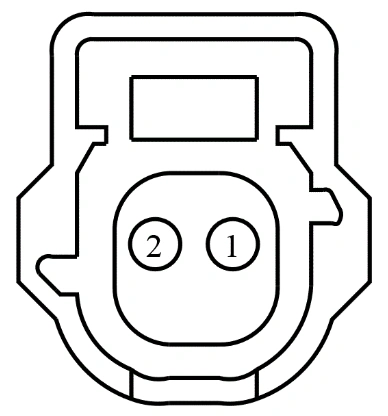

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VH407 (YE) | 20 | SENSOR - AMBIENT TEMP. | |
1 | VH407 (YE-GN) | 20 | SENSOR - AMBIENT TEMP. | |
2 | RE406 (GY-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SIGRTN) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1306 | Service Part Number: AU2Z-14S411-AGB Gauge: 20 Pin material: |
