CONNECTOR VIEWS > CONNECTOR END VIEW C137 - WINDSHIELD WASHER PUMP

Connector:C137

Description

WINDSHIELD WASHER PUMP

Color

BK

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below

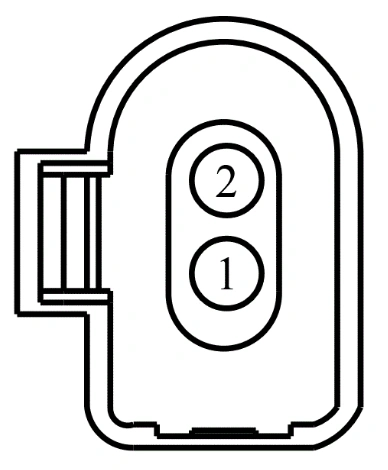

Connector End View C137 - Windshield Washer Pump — original illustration 1, reference 3726Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CRW14 (BU-WH)

14

CTRL MOD. - FRONT WASHER

Ford_Mustang_all_2015-2017.pdf · source reference 3726
