Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CBK02 (GN) | 18 | FUSE - 40 OR CIRCUIT BREAKER (VPWR 2) | |
1 | CBK02 (GN) | 16 | FUSE - 40 OR CIRCUIT BREAKER (VPWR 2) | |
2 | CE234 (BU-WH) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22) | |
3 | RE249 (WH-GN) | 18 | CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 2ND | |
3 | RE407 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) | |
4 | VE733 (WH) | 18 | SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) |

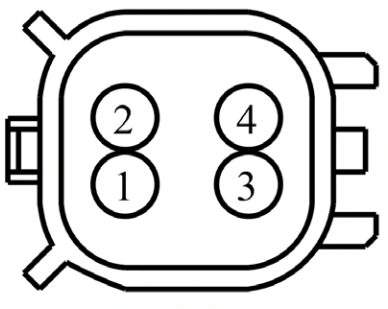

CONNECTOR VIEWS > CONNECTOR END VIEW C142 - HEATED OXYGEN SENSOR
(HO2S) #12
Connector:C142
Description
HEATED OXYGEN SENSOR (HO2S) #12
Color
