CONNECTOR VIEWS > CONNECTOR END VIEW C144 - INLINE

InlineC144

Description

INLINE

Color

DK GY

Base Part #

Service Pigtail

See Below

MALE

Harness 14290

FEMALE

Harness 8C290

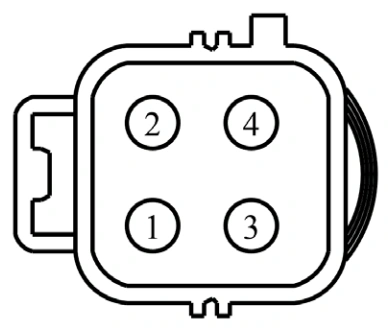

Connector End View C144 - Inline — original illustration 1, reference 3730Original colors & callouts · Select to enlarge

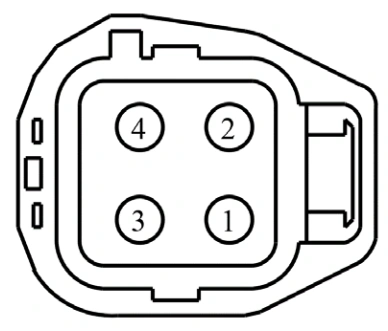

Connector End View C144 - Inline — original illustration 2, reference 3730Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 3730
