Connector End View C150 - Front Wheel Speed Sensor LH

OEM Connector End Views

Source configuration appliesSource reference 3,732HTML edition
← Chapter contentsManual collection

BK

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below

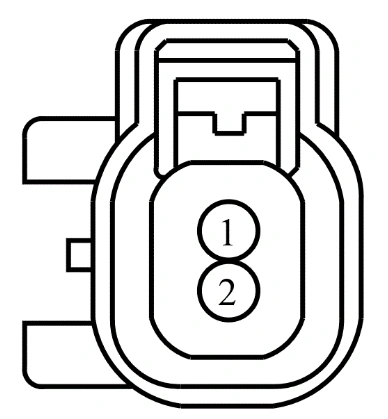

Connector End View C150 - Front Wheel Speed Sensor LH — original illustration 1, reference 3732Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VCA03 (VT-WH)

20

SENSOR - WHEEL SPEED LEFT FRONT

2

RCA17 (YE)

20

CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT

Available Pigtail Kits

Pigtail Kit Part Number

WPT-984

Service Part Number:

3U2Z-14S411-BXAB

Gauge:

16

Ford_Mustang_all_2015-2017.pdf · source reference 3732

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
