Check for Terminal Part Numbers

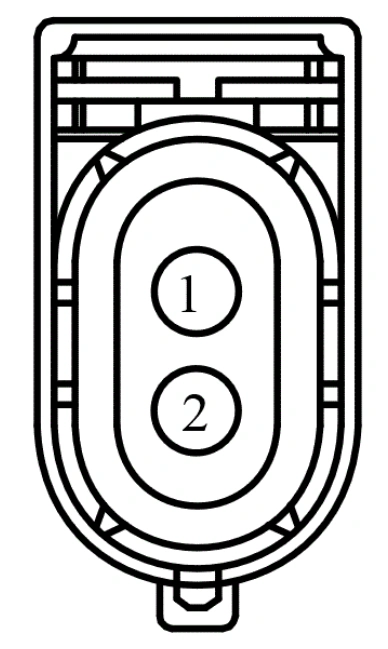

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CLF29 (BN) | 20 | CTRL MOD. - FOG LAMPS FRONT (LEFT) | |
2 | GD123 (BK-GY) | 16 | GROUND - FENDER FRONT RIGHT |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-904 | Service Part Number: 8U2Z-14S411-GA Gauge: 14 Pin material: Tin |
