Check for Terminal Part Numbers

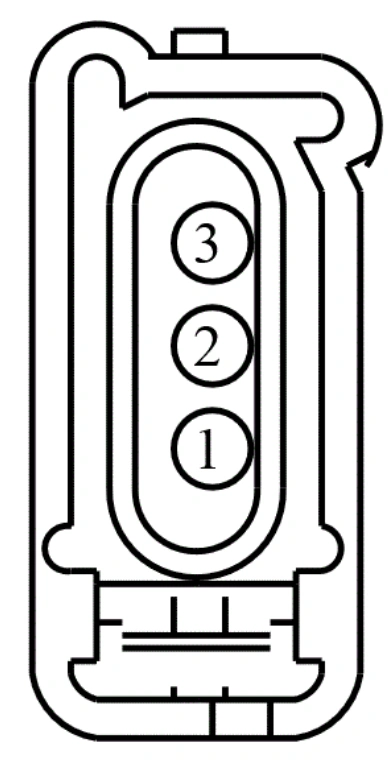

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | GD123 (BK-GY) | 20 | GROUND - FENDER FRONT RIGHT | |
2 | CLS06 (GN-OG) 20 | CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT | ||
3 | CLS21 (BU-GN) | 20 | CTRL MOD. - TURN LAMP LEFT FRONT |
Available Pigtail Kits
