Connector End View C160 - Front Wheel Speed Sensor RH

OEM Connector End Views

Source configuration appliesSource reference 3,738HTML edition
← Chapter contentsManual collection

Service Part Number:

3U2Z-14S411-FHAB

Gauge:

16

Pin material:

Pigtail Kit Part Number

Silver

WPT-1167

Cavities:

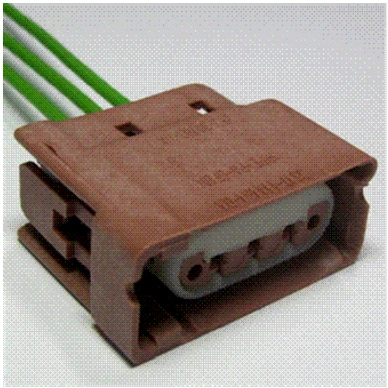

Connector End View C160 - Front Wheel Speed Sensor RH — original illustration 1, reference 3738Original colors & callouts · Select to enlarge

3

Vehicle Uses

Lamp - Front Cornering/Turn

Lamp - Front Park

Lamp - Front Turn

Lamp - Front Turn/ Marker

Lamp - Headlamp - High/Low Beam

Lamp - Park/Turn

Lamp - Park/Turn/Stop

Lamp - Rear Park

Lamp - Reverse

Lamp - Stop

CONNECTOR VIEWS > CONNECTOR END VIEW C160 - FRONT WHEEL SPEED

SENSOR RH

Connector:C160

Description

FRONT WHEEL SPEED SENSOR RH

Color

BK

Harness

14290

Ford_Mustang_all_2015-2017.pdf · source reference 3738
