Connector End View C160 - Front Wheel Speed Sensor RH

OEM Connector End Views

Source configuration appliesSource reference 3,739HTML edition
← Chapter contentsManual collection

Base Part #

part# N/A

Service Pigtail

See Below

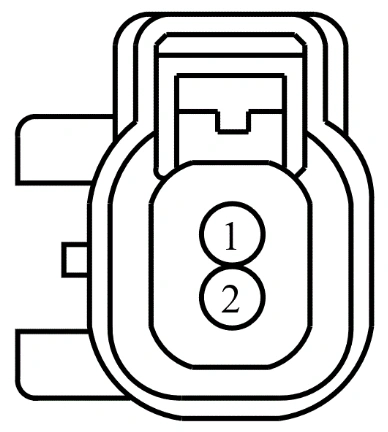

Connector End View C160 - Front Wheel Speed Sensor RH — original illustration 1, reference 3739Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VCA05 (GY-VT)

20

SENSOR - WHEEL SPEED RIGHT FRONT

2

RCA19 (VT)

20

CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT

Available Pigtail Kits

Pigtail Kit Part Number

WPT-984

Service Part Number:

3U2Z-14S411-BXAB

Gauge:

16

Pin material:

Silver

Cavities:

Ford_Mustang_all_2015-2017.pdf · source reference 3739
