Connector End View C156 - Side Turn Signal Lamp LH

OEM Connector End Views

Source configuration appliesSource reference 3,736HTML edition

← Chapter contents Manual collection

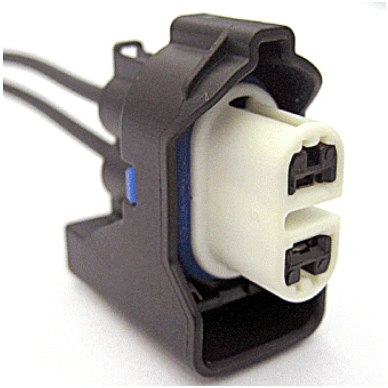

Connector End View C156 - Side Turn Signal Lamp LH — original illustration 1, reference 3736Original colors & callouts · Select to enlarge

Cavities:

2

Vehicle Uses

Lamp - Ash Tray

Lamp - Fog/Driving

CONNECTOR VIEWS > CONNECTOR END VIEW C156 - SIDE TURN SIGNAL LAMP LH

Connector:C156

Description

SIDE TURN SIGNAL LAMP LH

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below
