Connector End View C141 - Heated Oxygen Sensor (Ho2s) #22

OEM Connector End Views

Source configuration appliesSource reference 3,727HTML edition

← Chapter contents Manual collection

GD120 (BK-GN)

GROUND - FENDER FRONT LEFT

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

8U2Z-14S411-MA

WPT-908

Gauge:

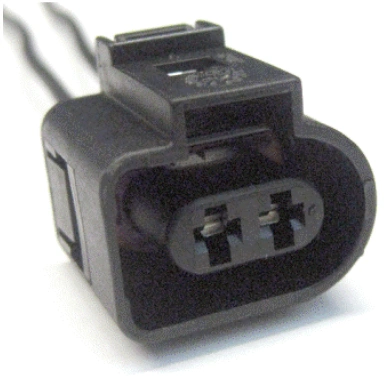

Connector End View C141 - Heated Oxygen Sensor (Ho2s) #22 — original illustration 1, reference 3727Original colors & callouts · Select to enlarge

14

Pin material:

Tin

Cavities:

2

Vehicle Uses

Monitor - Video/DVD

Motor - Convertible Top

CONNECTOR VIEWS > CONNECTOR END VIEW C141 - HEATED OXYGEN SENSOR

(HO2S) #22

Connector:C141

Description

HEATED OXYGEN SENSOR (HO2S) #22

Color

Harness

12C508/14B060

Base Part #

part# N/A

Service Pigtail

Not Available
