Connector End View C127 - Hood Switch

OEM Connector End Views

Source configuration appliesSource reference 3,714HTML edition

← Chapter contents Manual collection

Service Part Number:

FU2Z-14S411-TA

Pigtail Kit Part Number

Gauge:

WPT-1426

16

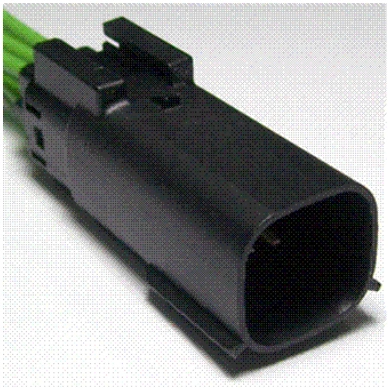

Connector End View C127 - Hood Switch — original illustration 1, reference 3714Original colors & callouts · Select to enlarge

Pin material:

Silver

Cavities:

6

Vehicle Uses:

Camera - Reverse Park Aid

Lamp - Park/Turn/Stop

Sensor - Coolant Temperature

Sensor - O2 (HEGO/ EGO)

CONNECTOR VIEWS > CONNECTOR END VIEW C127 - HOOD SWITCH

Connector:C127

Description

HOOD SWITCH

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below
