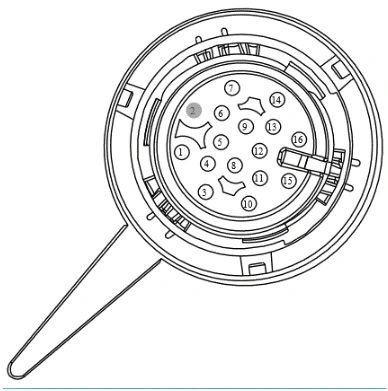

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VET33 (WH-OG) | 20 | SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + | |
2 | * | * | Not Used | |
3 | CET10 (BU-GY) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS] | |
4 | VET32 (VT) | 20 | SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P) | |
5 | RE454 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 | |
6 | VET27 (BN-YE) | 20 | SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) | |
7 | CET49 (BN) | 18 | CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL 2 (TSPC2) | |
8 | CET18 (GY-YE) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 1 (SS1) |
