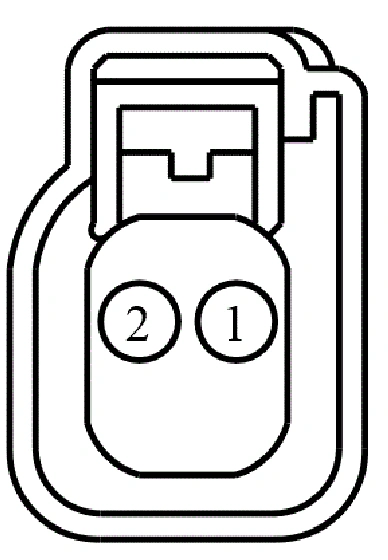

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CET47 (BU) | 20 | SWITCH - REVERSE (RS) | |
2 | RE406 (GY-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) | |
2 | RET24 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1243 | Service Part Number: 3U2Z-14S411-RPC Gauge: 16 Pin material: |
