Connector End View C174 - Ignition Transformer Capacitor 1

OEM Connector End Views

Source configuration appliesSource reference 3,749HTML edition
← Chapter contentsManual collection

Color

BK

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

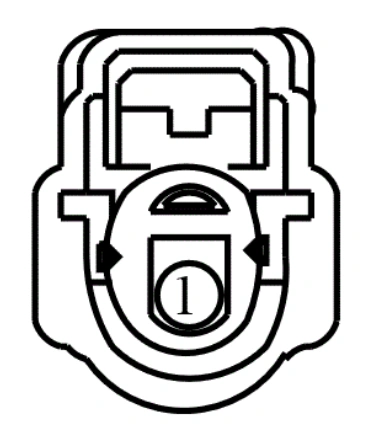

Connector End View C174 - Ignition Transformer Capacitor 1 — original illustration 1, reference 3749Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CBK04 (VT)

18

FUSE - 44 OR CIRCUIT BREAKER (VPWR 4)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1253

Service Part Number:

6U2Z-14S411-KB

Gauge:

16
