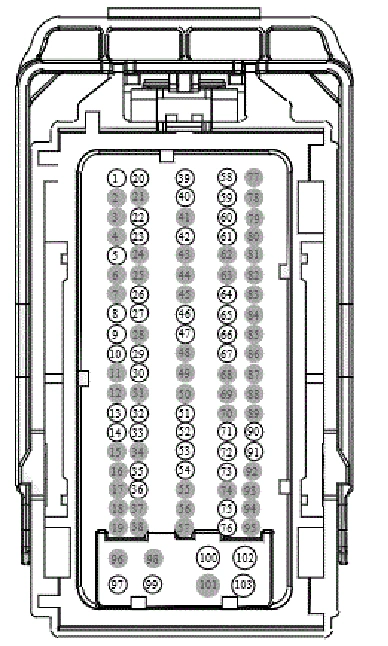

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CDC54 (WH-GN) | 20 | CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) | |
2 | * | * | Not Used | |
3 | * | * | Not Used | |
4 | * | * | Not Used | |
5 | GD113 (BK-YE) | 18 | GROUND - COWL TOP RIGHT | |
6 | * | * | Not Used |
