Connector End View C175b - Powertrain Control Module (PCM)

OEM Connector End Views

Source configuration appliesSource reference 3,750HTML edition
← Chapter contentsManual collection

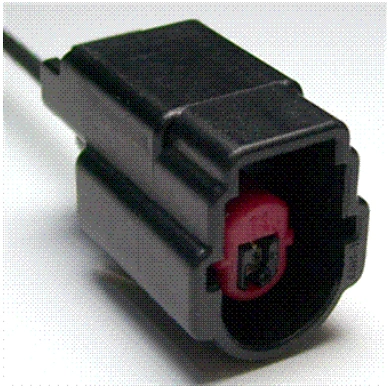

Connector End View C175b - Powertrain Control Module (PCM) — original illustration 1, reference 3750Original colors & callouts · Select to enlarge

Pin material:

Tin (greased)

Cavities:

1

Vehicle Uses

Capacitor - Ignition/Radio

CONNECTOR VIEWS > CONNECTOR END VIEW C175B - POWERTRAIN CONTROL

MODULE (PCM)

Connector:C175B

Description

POWERTRAIN CONTROL MODULE (PCM)

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

Not Available

Ford_Mustang_all_2015-2017.pdf · source reference 3750

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
