CONNECTOR VIEWS > CONNECTOR END VIEW C311 - INLINE

InlineC311

Description

INLINE

Color

Base Part #

Service Pigtail

Not Available

MALE

Harness 14631

FEMALE

Harness 14A005

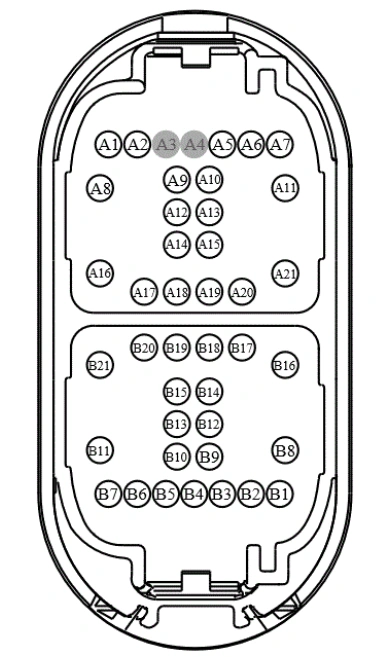

Connector End View C311 - Inline — original illustration 1, reference 3873Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 3873
