Connector End View C484 - Rear Speaker LH

OEM Connector End Views

Source configuration appliesSource reference 3,961HTML edition
← Chapter contentsManual collection

14A005

Base Part #

part# N/A

Service Pigtail

See Below

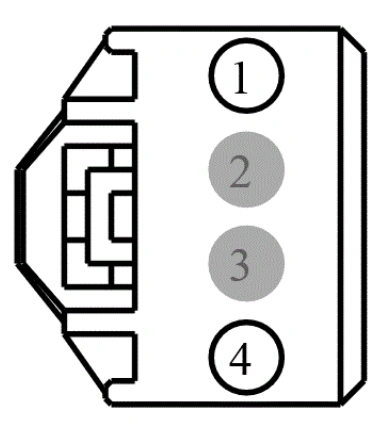

Connector End View C484 - Rear Speaker LH — original illustration 1, reference 3961Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VME09 (WH-GN) 18

CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) +

2

*

*

Not Used

3

*

*

Not Used

4

RME09 (BN-YE)

18

CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-912

Service Part Number:

8U2Z-14S411-HA
