Check for Terminal Part Numbers

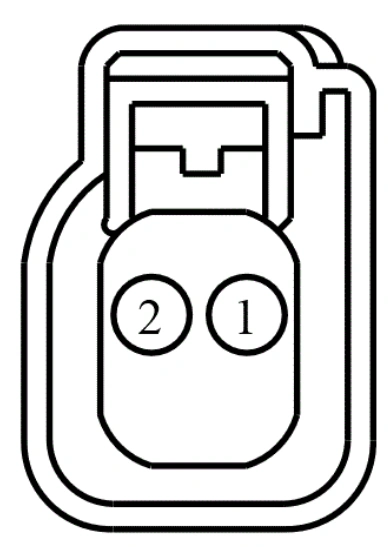

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | GD301 (BK-BU) | 22 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 3RD POINT | |
2 | CLS30 (VT-WH) | 22 | RELAY - PARK LAMP |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1243 | Service Part Number: 3U2Z-14S411-RPC Gauge: 16 Pin material: Tin (greased) Cavities: |
