Connector End View C481 - Rear Side Marker Lamp LH — OEM Connector End Views · Reference 3957

1	GD301 (BK-BU)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT # 3RD POINT
2	CLS30 (VT-WH)	22	RELAY - PARK LAMP

Available Pigtail Kits

Service Part Number:

3U2Z-14S411-RPC

Gauge:

16

Pin material:

Tin (greased)

Pigtail Kit Part Number Cavities:

WPT-1243 2

Vehicle Uses

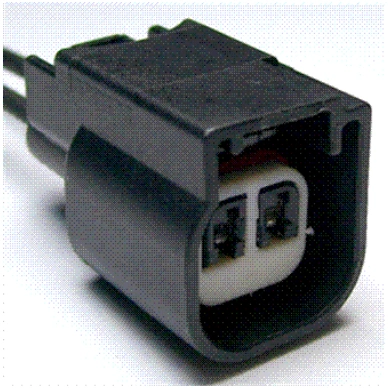

Connector End View C481 - Rear Side Marker Lamp LH — original illustration 1, reference 3957Original colors & callouts · Select to enlarge

Actuator - Door Lock - LH - Rear

Actuator - Door Lock - RH - Rear

Handle - Decklid

Lamp - Headlamp - High/Low Beam

Lamp - Headlamp - Low Beam

Lamp - License

Lamp - Rear Turn

Lamp - Side Marker

Sensor - Knock

Sensor - Seat Track Position

Sensor - Throttle Position

Sensor - Turbine Shaft Speed

Sensor - Water in Fuel

Ford_Mustang_all_2015-2017.pdf · source reference 3957
