CONNECTOR VIEWS > CONNECTOR END VIEW C475 - HIGH MOUNTED STOPLAMP

Connector:C475

Description

HIGH MOUNTED STOPLAMP

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

Not Available

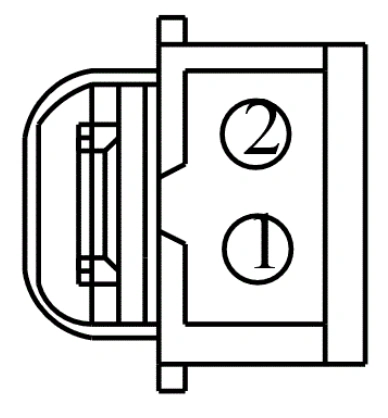

Connector End View C475 - High Mounted Stoplamp — original illustration 1, reference 3955Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLS17 (YE-GY)	22	CTRL MOD. - STOP HIGH MOUNT
2	GD347 (BK-VT)	18	GROUND - PILLAR C OR QUARTER PANEL LEFT

Ford_Mustang_all_2015-2017.pdf · source reference 3955
