Connector End View C440 - Rear Wheel Speed Sensor LH — OEM Connector End Views · Reference 3953

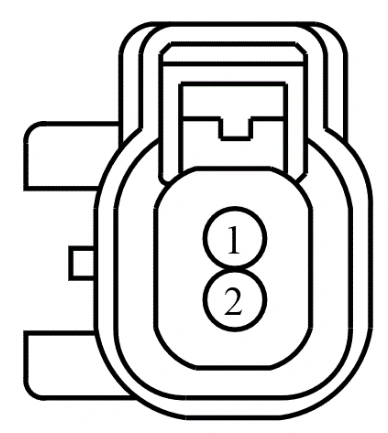

Connector End View C440 - Rear Wheel Speed Sensor LH — original illustration 1, reference 3953Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VCA04 (BU-OG)	20	SENSOR - WHEEL SPEED LEFT REAR
2	RCA18 (BN-GN)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

3U2Z-14S411-BXAB

WPT-984

Gauge:

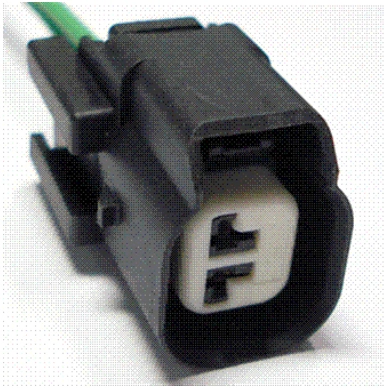

Connector End View C440 - Rear Wheel Speed Sensor LH — original illustration 2, reference 3953Original colors & callouts · Select to enlarge

16

Pin material:

Silver

Cavities:

2

Vehicle Uses

A/C Compressor Clutch

EGR Cooler Outlet
